Oracle 12c R2 (12.2.0.1) RAC Installation Steps on Oracle Linux 7.3

Category: AdministrationFatih Acar @ 14:37

Oracle Real Application Clusters (Oracle RAC) is a clustered database infrastructure of Oracle Database based on a comprehensive high-availability stack that can be used as the foundation of a database cloud system as well as a shared infrastructure, ensuring high availability, scalability, and agility for any application. Oracle Real Application Cluster has been using with Oracle 9i version since in 2001. This feature provides software for clustering and high availability in Oracle database environments.

Top Benefits of Real Application Clusters (RAC)

  • Ability to spread CPU load across multiple servers
  • Continuous Availability / High Availability (HA)

– Protection from single instance failures

– Protection from single server failures

  • RAC can take advantage of larger SGA sizes than can be accommodated by a single instance commodity server
  • Scalability







Oracle RAC installation steps are a bit long. Firstly, you have to adjust system parameters of operating system on both node and create asm disks. After, you can start to install of grid infrastructure. You can create disk groups for DATA and FRA disk groups after install grid. Finally you can install Oracle RAC database on grid infrastructure and ASM disks. I divide the stages of installation four steps.

First Step : Configure Operation System

1. Upgrade Packages

On each node

yum upgrade

yum install oracleasm-support

2. Selinux Disable

On each node

You can do disabled or permissive

vi /etc/selinux/config

SELINUX=disabled

3. Firewall Close and Disable

On each node

You can open after installation,but you have to give permission to necessery ports.

systemctl stop firewalld.service

systemctl disable firewalld.service

4. Create Users

On each node

Group and user ids have to be the same.

groupadd –g 501 oinstall

groupadd –g 502 dba

groupadd –g 503 oper

groupadd –g 504 asmadmin

groupadd –g 505 asmdba

groupadd –g 506 asmoper

useradd –u 502 –g oinstall –G dba,asmdba,oper oracle

passwd oracle

useradd –u 501 –g oinstall –G asmadmin,asmoper,asmdba grid

passwd grid

5. Configure Bash Profile of Users.

Oracle user bash_profile on node 1

vi .bash_profile

# Oracle Settings

export TMP=/tmp

export TMPDIR=$TMP

export ORACLE_HOSTNAME=ractest12c01.sm.gov.tr

export ORACLE_UNQNAME=RACTEST

export ORACLE_BASE=/oracle/db/12.2.0.1

export DB_HOME=$ORACLE_BASE/db_home

export ORACLE_HOME=$DB_HOME

export ORACLE_SID=RACTEST1

export ORACLE_TERM=xterm

export BASE_PATH=/usr/sbin:$PATH

export PATH=$ORACLE_HOME/bin:$BASE_PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib

export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

alias home=’cd /oracle/db/12.2.0.1/db_home’



Oracle user bash_profile on node 2

vi .bash_profile

# Oracle Settings

export TMP=/tmp

export TMPDIR=$TMP

export ORACLE_HOSTNAME=ractest12c02.sm.gov.tr

export ORACLE_UNQNAME=RACTEST

export ORACLE_BASE=/oracle/db/12.2.0.1

export DB_HOME=$ORACLE_BASE/db_home

export ORACLE_HOME=$DB_HOME

export ORACLE_SID=RACTEST2

export ORACLE_TERM=xterm

export BASE_PATH=/usr/sbin:$PATH

export PATH=$ORACLE_HOME/bin:$BASE_PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib

export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib



Grid user bash_profile on node 1

# Oracle Settings

export TMP=/tmp

export TMPDIR=$TMP

export ORACLE_HOSTNAME=ractest12c01.sm.gov.tr

export ORACLE_UNQNAME=RACTEST

export ORACLE_BASE=/oracle/gridbase/12.2.0.1

export GRID_BASE=/oracle/gridbase/12.2.0.1

export GRID_HOME=/oracle/grid/12.2.0.1/grid_home

export ORACLE_HOME=/oracle/grid/12.2.0.1/grid_home

export ORACLE_SID=+ASM1

export ORACLE_TERM=xterm

export BASE_PATH=/usr/sbin:$PATH

export PATH=$ORACLE_HOME/bin:$BASE_PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib

export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

alias home=’cd /oracle/grid/12.2.0.1/grid_home’



Grid user bash_profile on node 2

# Oracle Settings

export TMP=/tmp

export TMPDIR=$TMP

export ORACLE_HOSTNAME=ractest12c02.sm.gov.tr

export ORACLE_UNQNAME=RACTEST

export ORACLE_BASE=/oracle/gridbase/12.2.0.1

export GRID_BASE=/oracle/gridbase/12.2.0.1

export GRID_HOME=/oracle/grid/12.2.0.1/grid_home

export ORACLE_HOME=/oracle/grid/12.2.0.1/grid_home

export ORACLE_SID=+ASM2

export ORACLE_TERM=xterm

export BASE_PATH=/usr/sbin:$PATH

export PATH=$ORACLE_HOME/bin:$BASE_PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib

export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

alias home=’cd /oracle/grid/12.2.0.1/grid_home’

6. Create Directories

on each node

mkdir -p /oracle/grid/12.2.0.1/grid_home

mkdir -p /oracle/grid/12.2.0.1/log

mkdir -p /oracle/gridbase/12.2.0.1/

mkdir -p /oracle/db/12.2.0.1/db_home

chown -R oracle.oinstall /oracle/

chown -R grid.oinstall /oracle/grid*

chmod -R 775 /oracle/

7. Configure ASM Disks

*Your disk name can be different from I used. I configured sdc, sdd,sde and sdf disks for asm on my test suite. These sd* disks can be different on your system.

on each node

with root user.

oracleasm configure -i

Answers of Questions;

grid

asmadmin

y

y

After finish configuration you can make init with below command.

oracleasm init

on node 1

Create partition.

fdisk /dev/sdc

fdisk /dev/sdd

fdisk /dev/sde

fdisk /dev/sdf

oracleasm createdisk DATA1 /dev/sdc1

oracleasm createdisk FRA1 /dev/sdd1

oracleasm createdisk GRID1 /dev/sde1

oracleasm createdisk GIMR1 /dev/sdf1

on each node for control

oracleasm scandisks

oracleasm listdisks

You have to see disks on each node with oracleasm listdisks command.

ll /dev/oracleasm/disks/

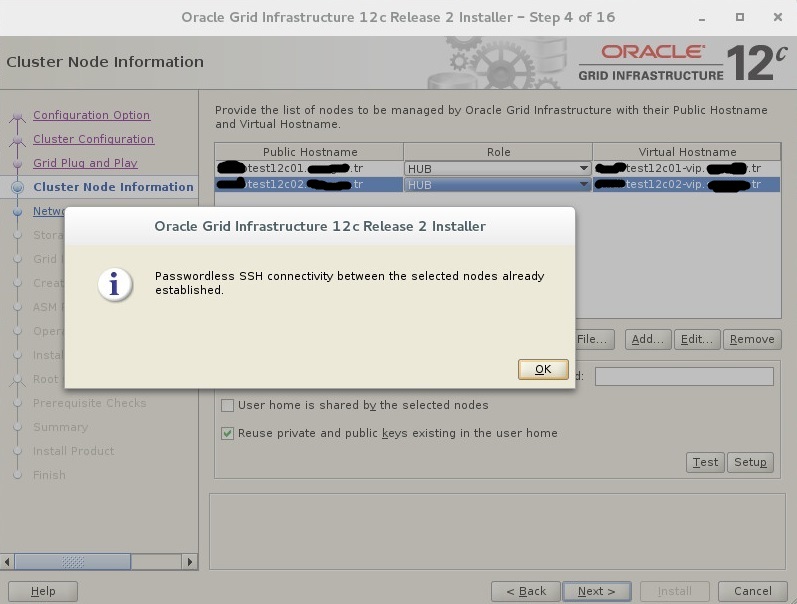

8. Configure Passwordless SSH Connection (optional)

You can configure ssh passwordless connection. Oracle installation step can make this step, but sometimes you can get an error.

You can find how to do this step here.

9. Chrony NTP Configuration

Chrony plugin came with Oracle Linux 7 version for ntp sync. You can write your ntp server information in /etc/chrony.conf file.

on each node

vi /etc/chrony.conf

server ntp.yourdomain

systemctl restart chronyd.service

systemctl enable chronyd.service

10. Configure Hosts File

on each node

You can write your domain name info instead of yourdomain text. Also, you can give IP addresses as your IP structure. priv and public network subnet have to be different.

vi /etc/hosts

20.10.4.141 ractest12c01 ractest12c01.yourdomain

20.10.4.142 ractest12c02 ractest12c02.yourdomain

20.10.4.143 ractest12c01-vip ractest12c01-vip.yourdomain

20.10.4.144 ractest12c02-vip ractest12c02-vip.yourdomain

20.10.4.145 ractest12c-scan ractest12c-scan.yourdomain

20.10.4.146 ractest12c-scan ractest12c-scan.yourdomain

20.10.4.147 ractest12c-scan ractest12c-scan.yourdomain

165.5.10.1 ractest12c01-priv ractest12c01-priv.yourdomain

165.5.10.2 ractest12c02-priv ractest12c02-priv.yourdomain

11. DNS Register (optional)

If you do not want to take an warning at last step of installation, you can add your alias to your domain server.

Also, you can configure dns information of nodes in /etc/resolf.conf file.

12. Preinstallation Package Intallation

on each node

yum install oracle-database-server-12cR2-preinstall

reboot

Second Step : Install Grid Infrastructure

You have to copy your grid installation files to grid_home. I recommend that you copy grid zip file to grid home and change owner of zip file, and unzip with grid user.

Copy and Unzip Grid Files

cp linuxx64_12201_grid_home.zip /oracle/grid/12.2.0.1/grid_home

chown grid.oinsall linuxx64_12201_grid_home.zip

su – grid

unzip linuxx64_12201_grid_home.zip

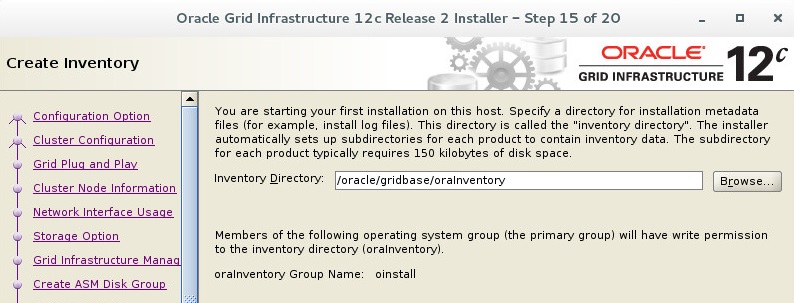

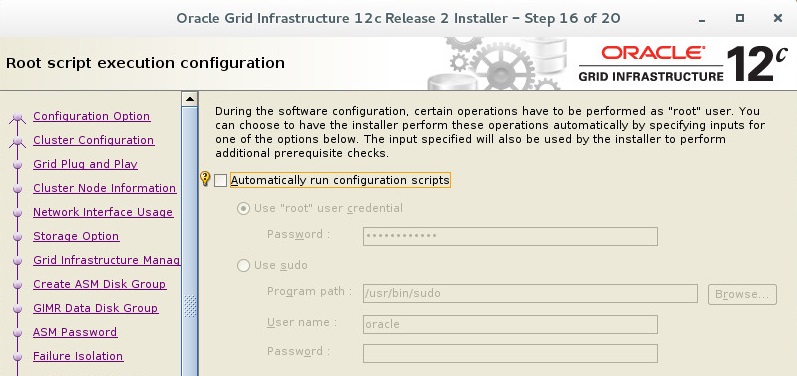

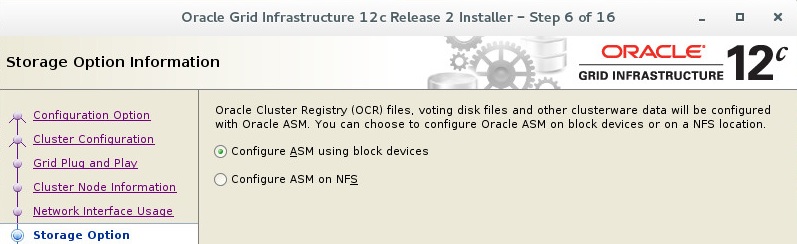

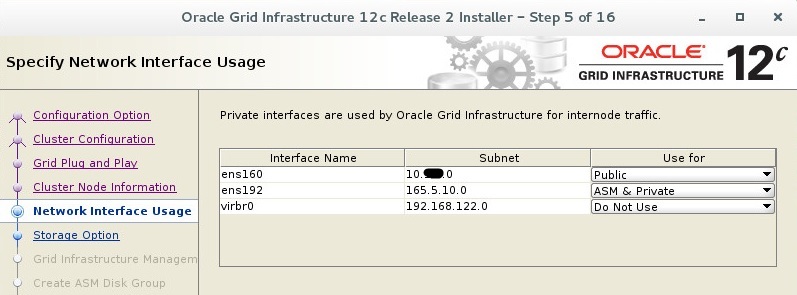

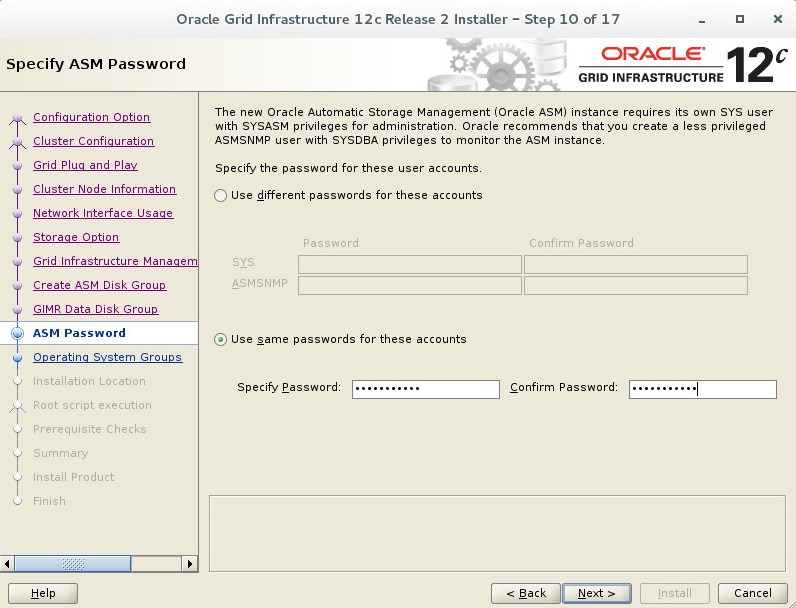

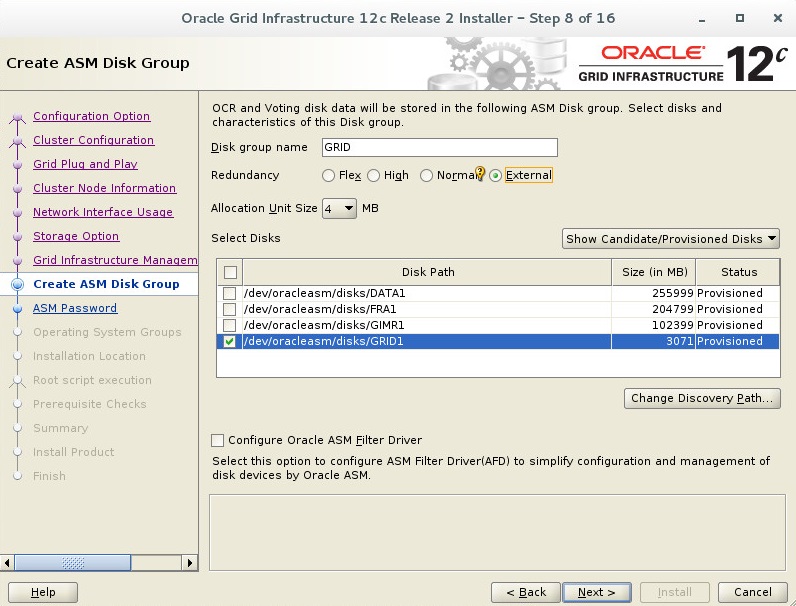

Display Config and Start Grid Installation

su –

export DISPLAY=:0.0

xhost +

su – grid

export DISPLAY=:0.0

xhost +

cd /$GRID_HOME/

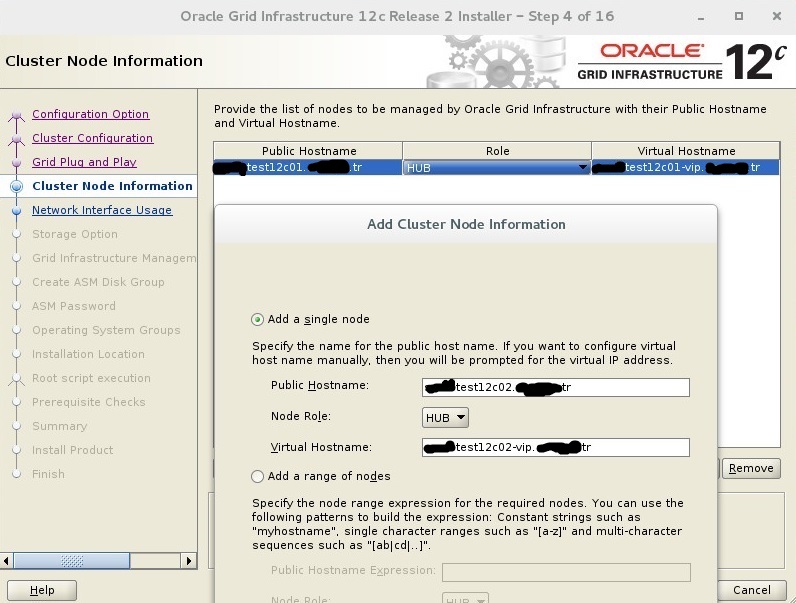

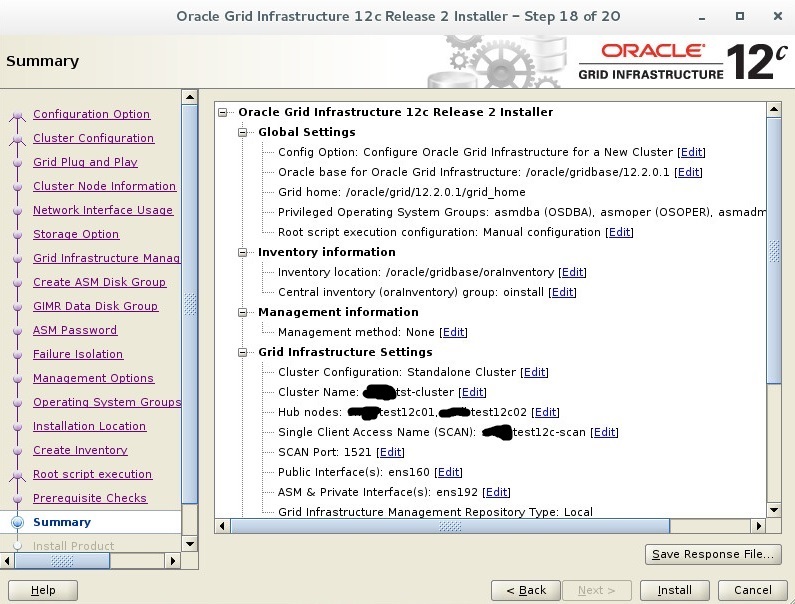

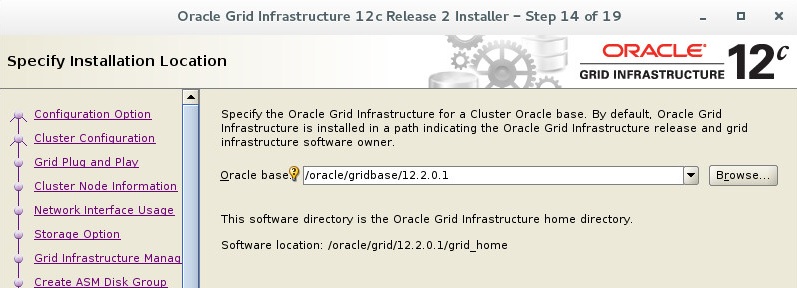

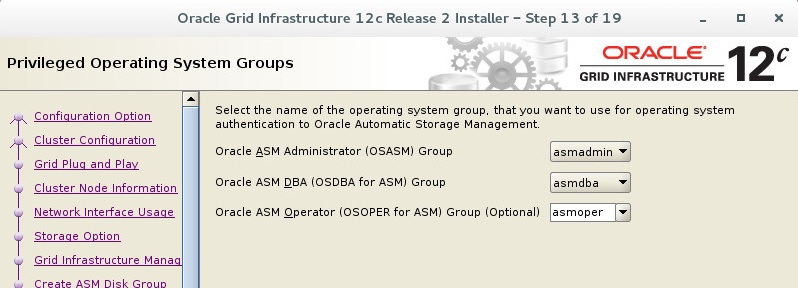

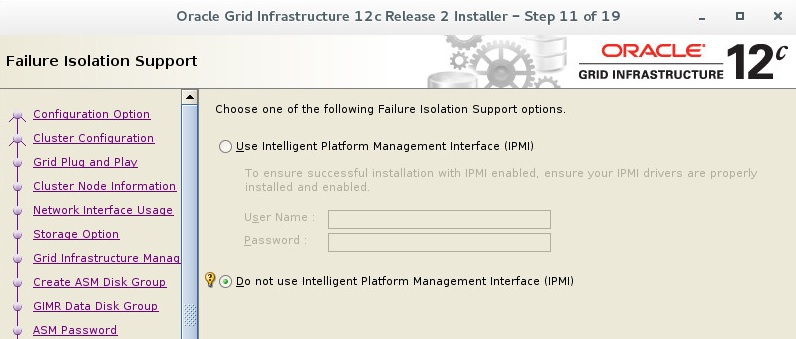

./grid_Setup.sh

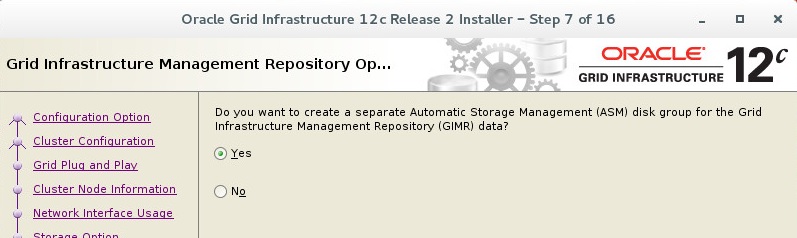

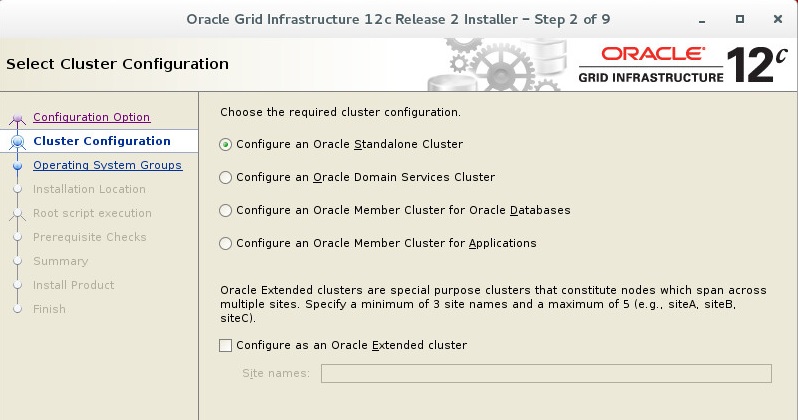

GIMR came with Oracle 12c version. Every Oracle Standalone Cluster and Oracle Domain Services Cluster contains a Grid Infrastructure Management Repository (GIMR), or the Management Database (MGMTDB).

The Grid Infrastructure Management Repository (GIMR) is a multitenant database with a pluggable database (PDB) for the GIMR of each cluster. The GIMR stores the following information about the cluster:

  • Real time performance data the Cluster Health Monitor collects
  • Fault, diagnosis, and metric data the Cluster Health Advisor collects
  • Cluster-wide events about all resources that Oracle Clusterware collects
  • CPU architecture data for Quality of Service Management (QoS)
  • Metadata required for Rapid Home Provisioning

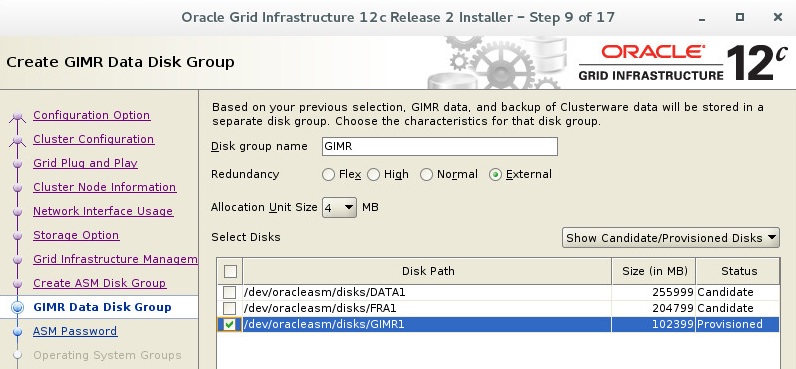

You have to give at least 40 GB size to GIMR data. I gave 100 GB this system and gave separate disk area for GIMR db.

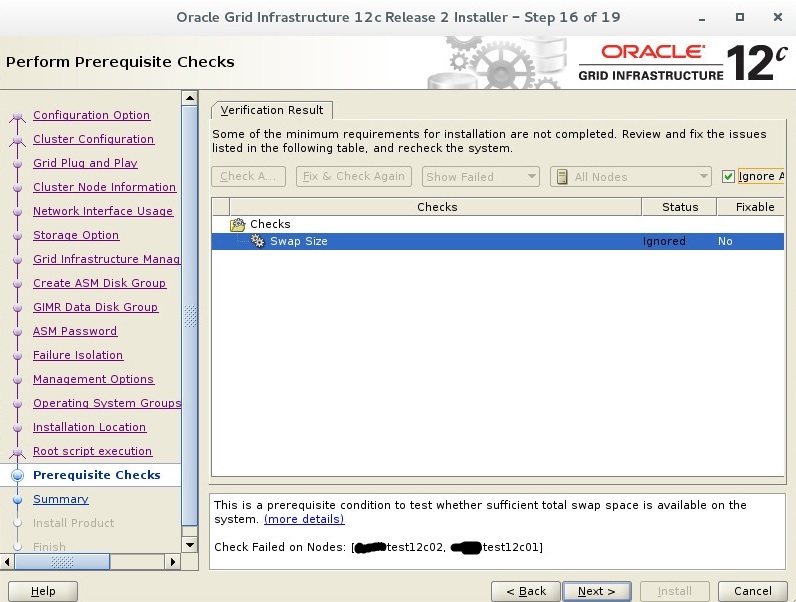

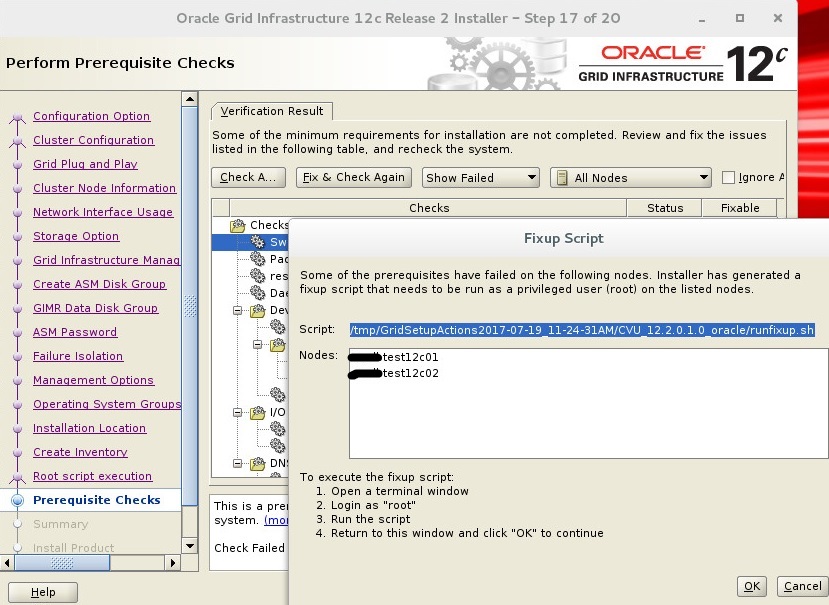

Fix & Check Again button creates fix scripts to resolve warnings. You have to run this scripts on both node to resolve warnings.

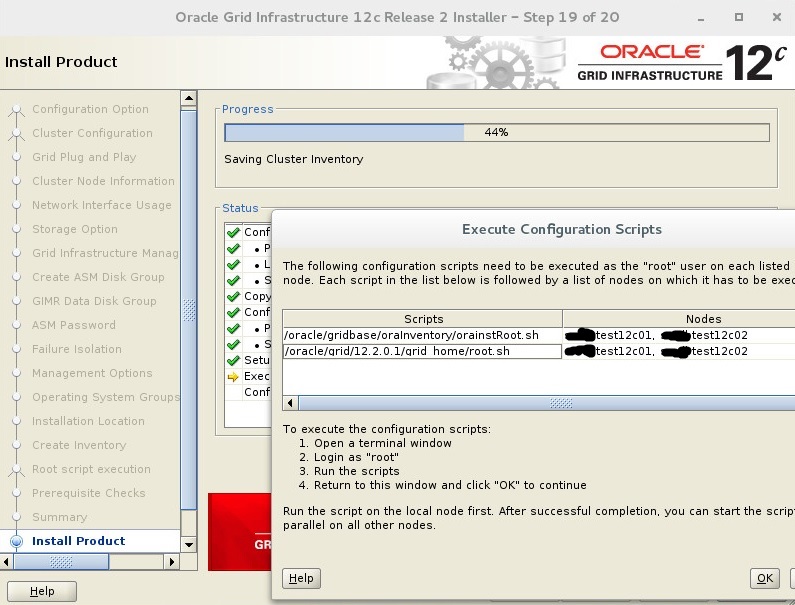

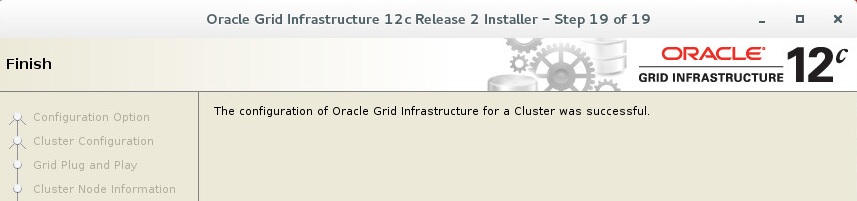

You have to run this scripts on both node respectively. The run can be a bit long. Scripts passes 19 steps, you can see these steps while running scripts. You can click OK, after run scripts on each node. If you do not get an error, you can see this screen.

You can check your grid status with crs_stat -t and crsctl stat res -t commands with grid user.

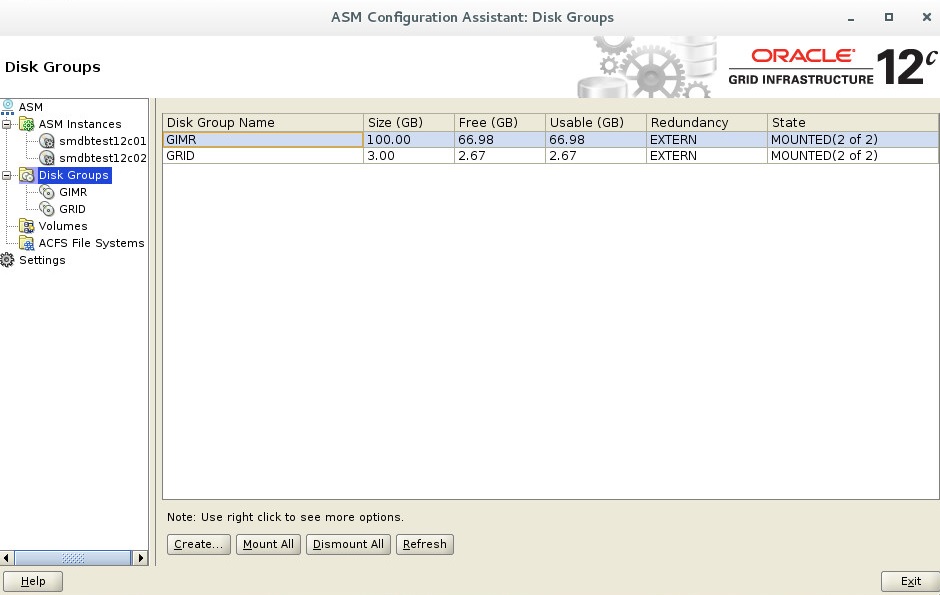

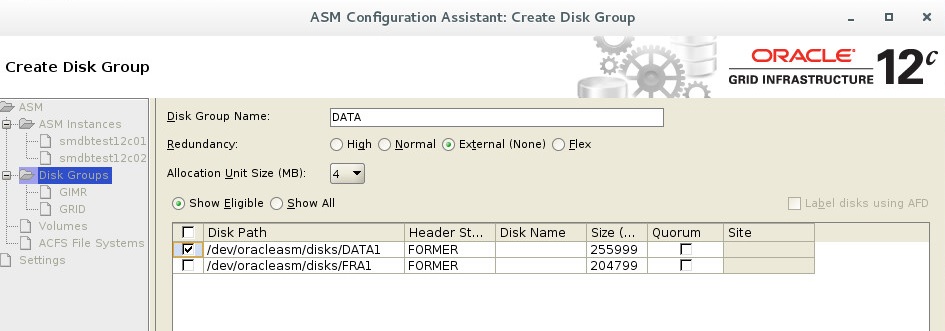

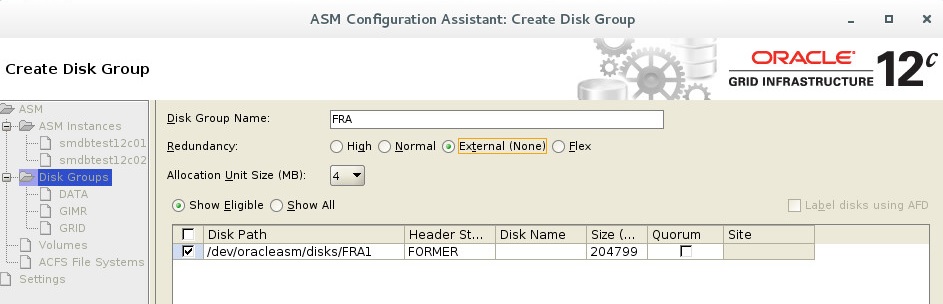

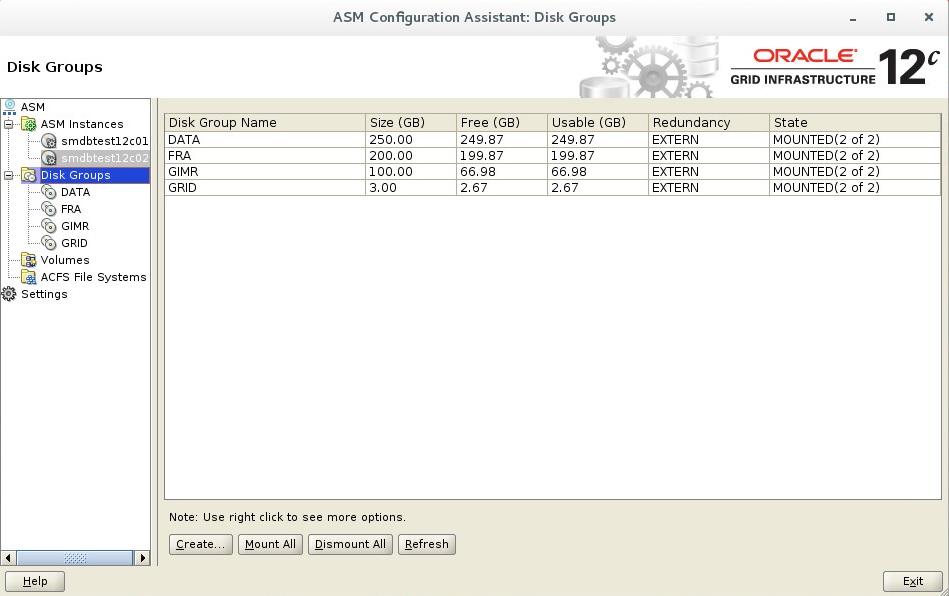

Third Step : Create ASM Disk Group For DATA and FRA

Display Config and Start ASMCA

su –

export DISPLAY=:0.0

xhost +

su – grid

export DISPLAY=:0.0

xhost +

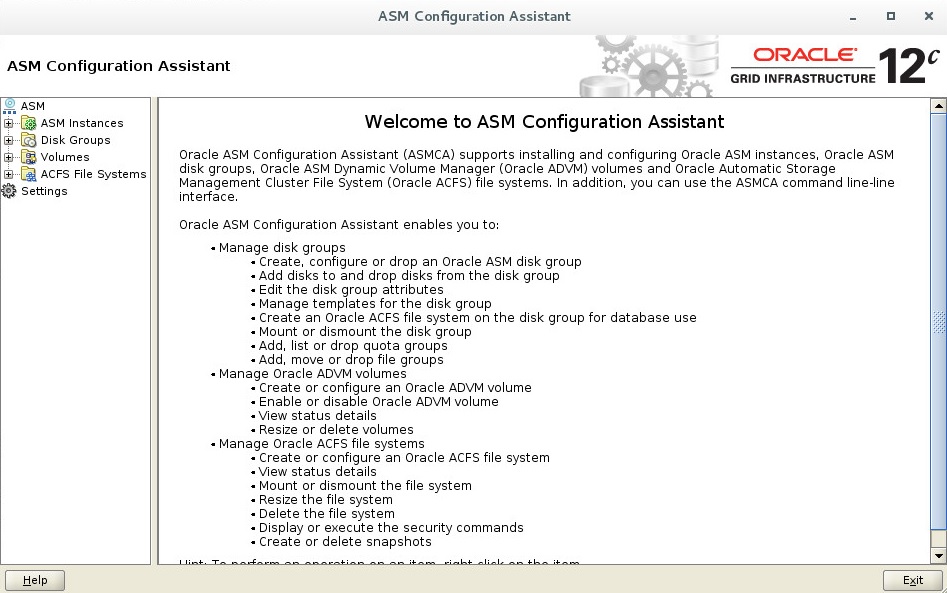

asmca

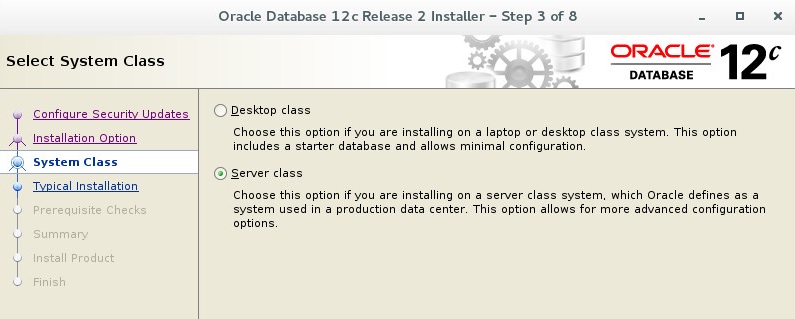

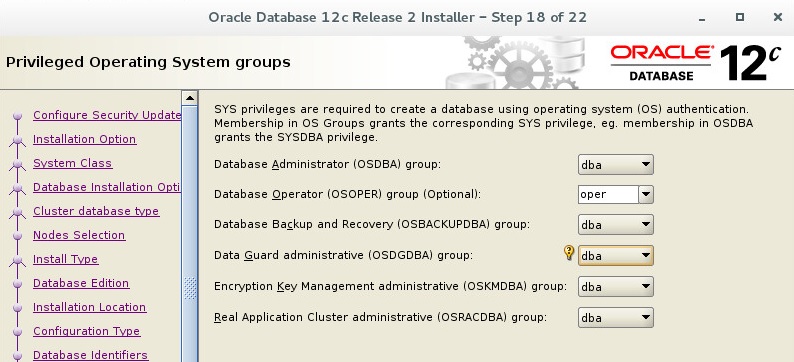

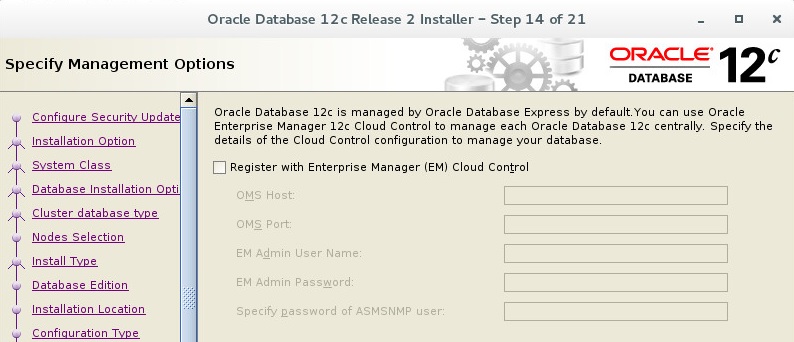

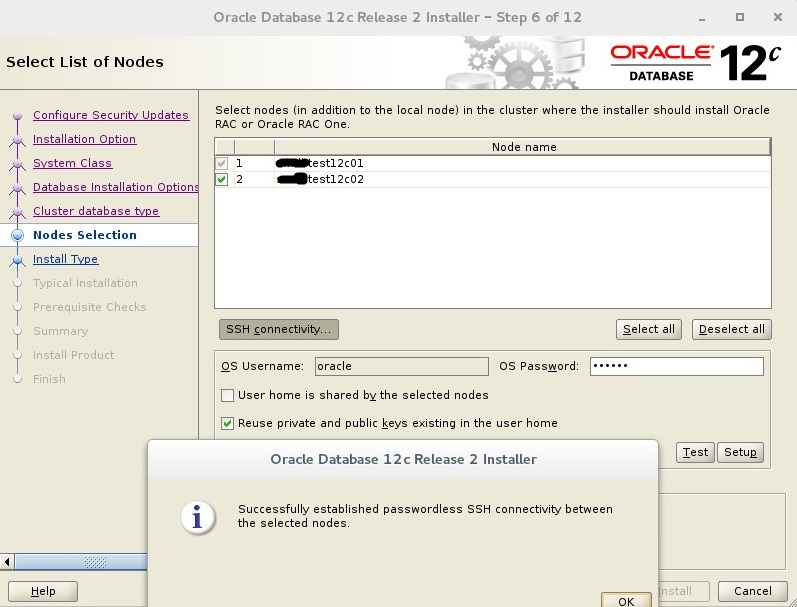

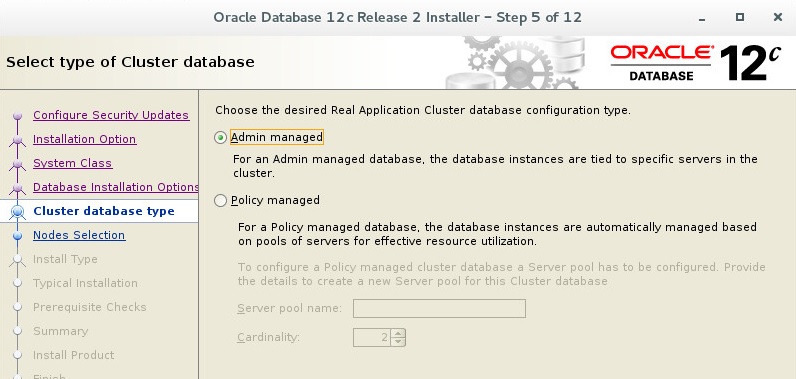

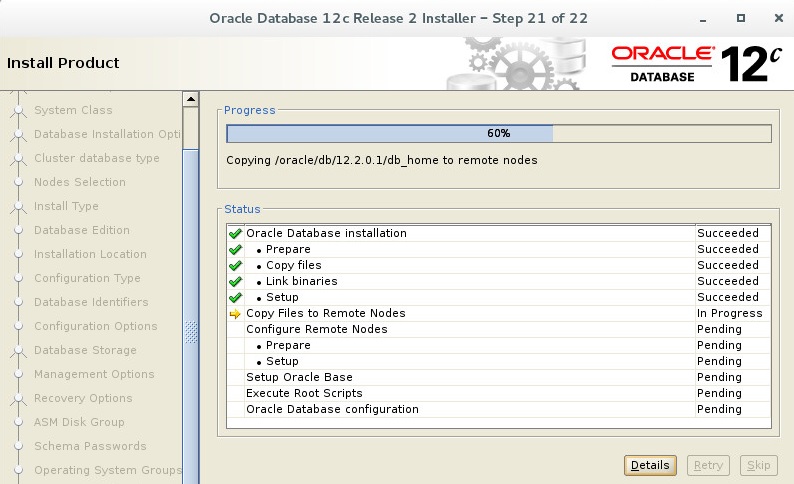

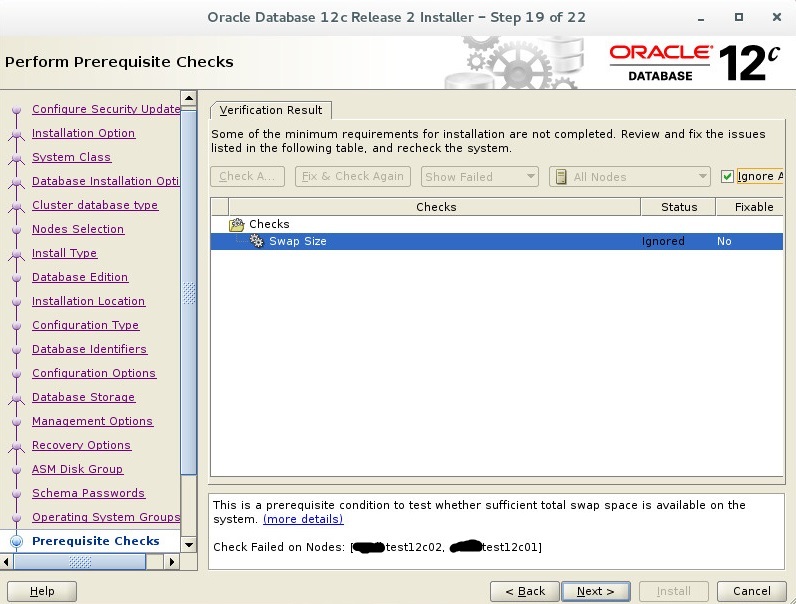

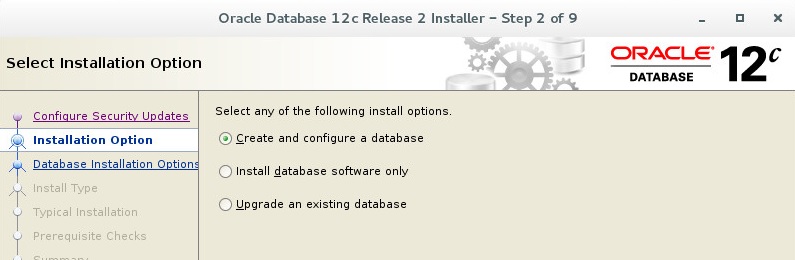

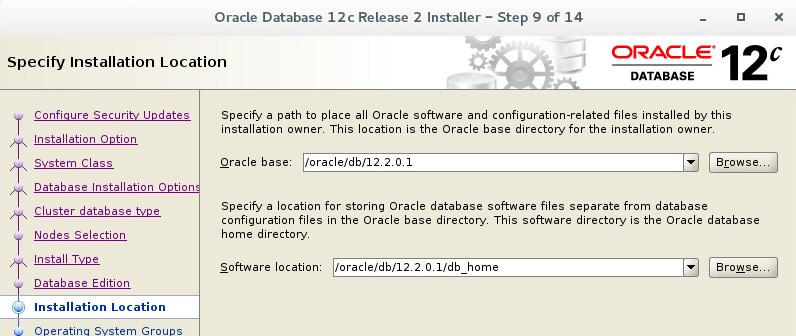

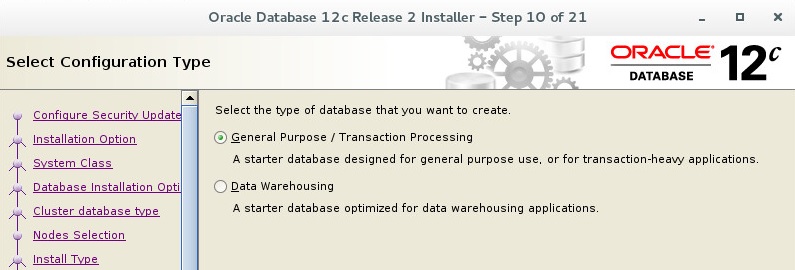

Fourth Step : Install Database

You can unzip database file under /tmp/ and you have to give permission oracle user.

chown oracle.oinstall –R /tmp/database/

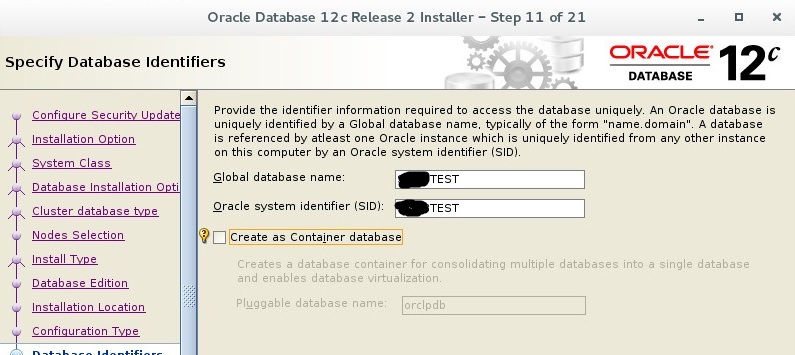

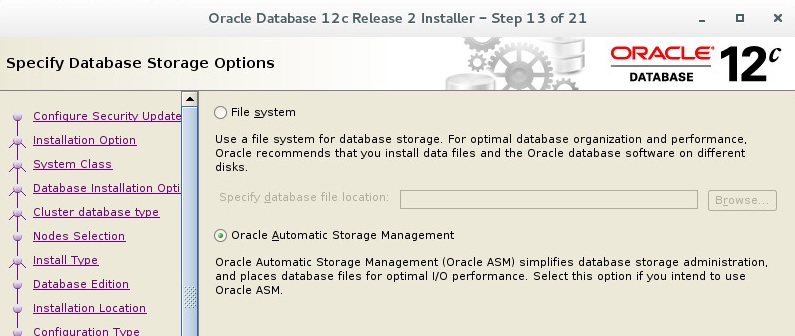

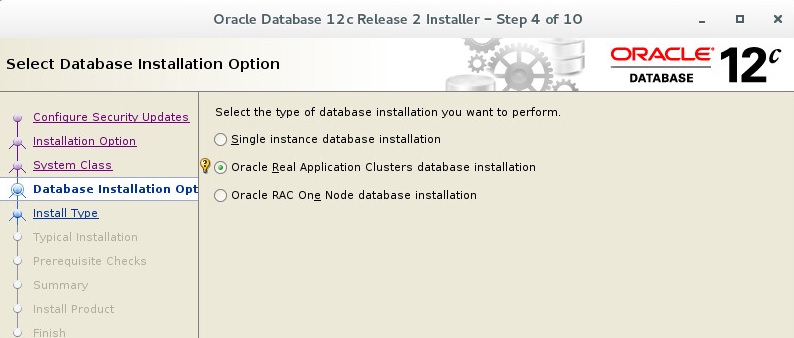

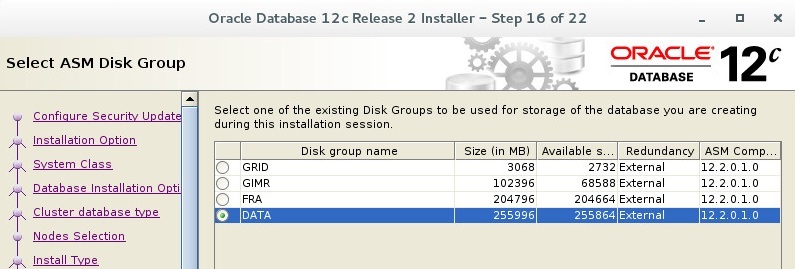

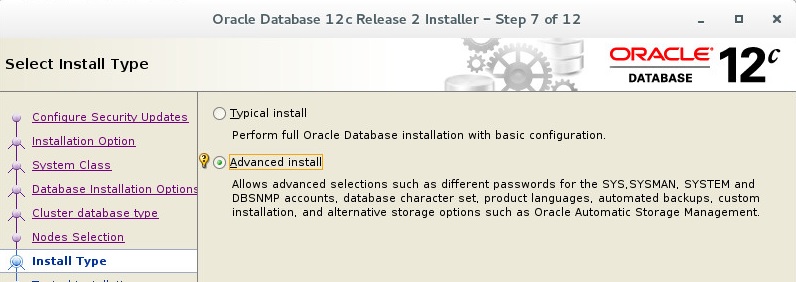

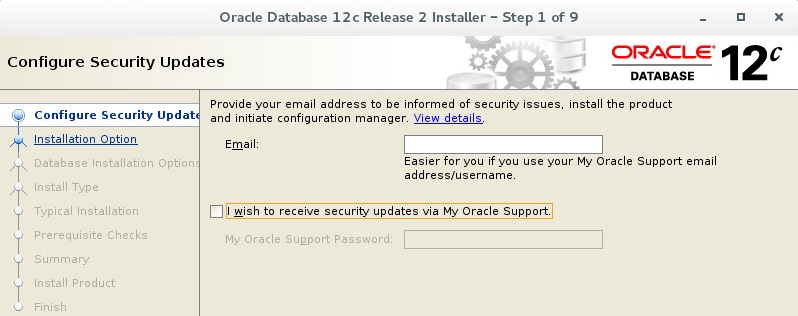

Display Config and Start Database Installation

su –

export DISPLAY=:0.0

xhost +

su – oracle

export DISPLAY=:0.0

xhost +

cd /tmp/database/

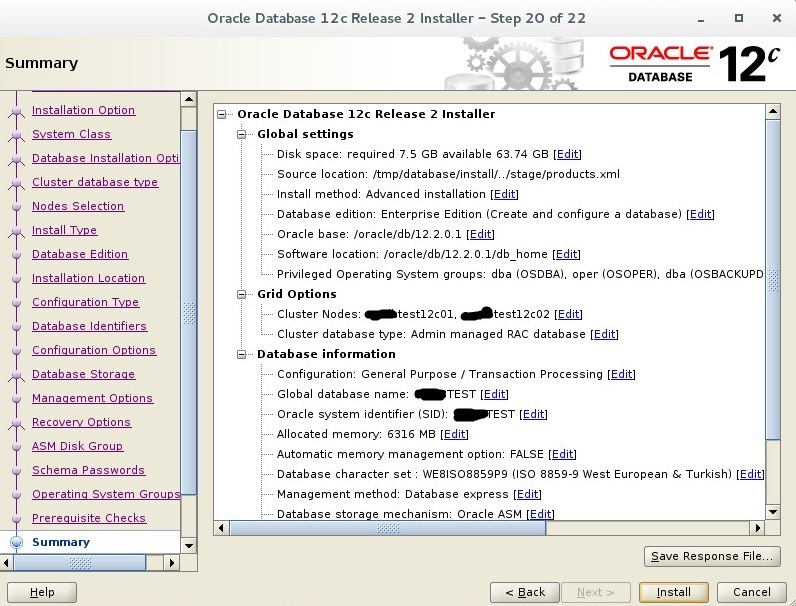

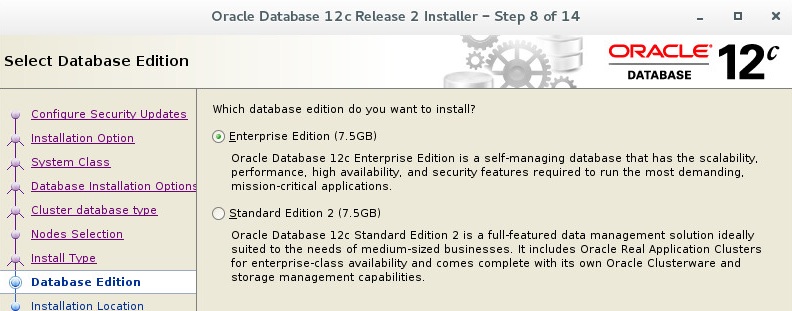

./runInstaller

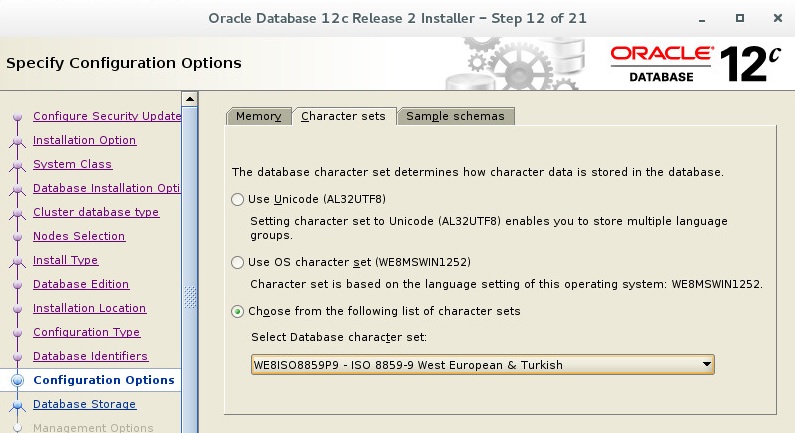

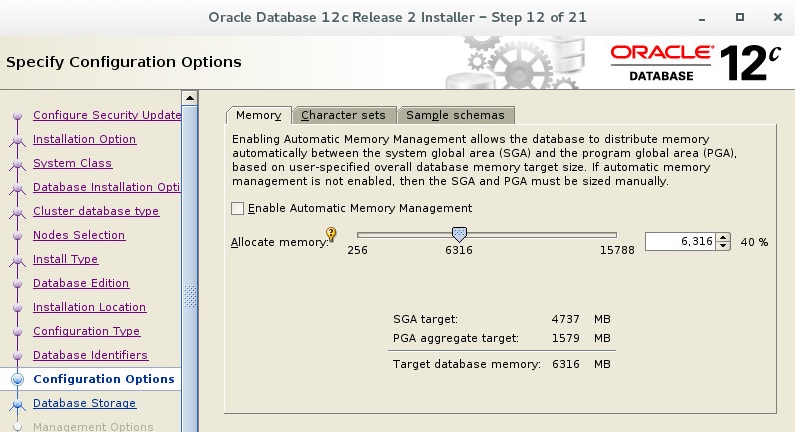

We usually use WE8ISO8859P9 characterset to support Turkish characters. You can select another one that suits you.

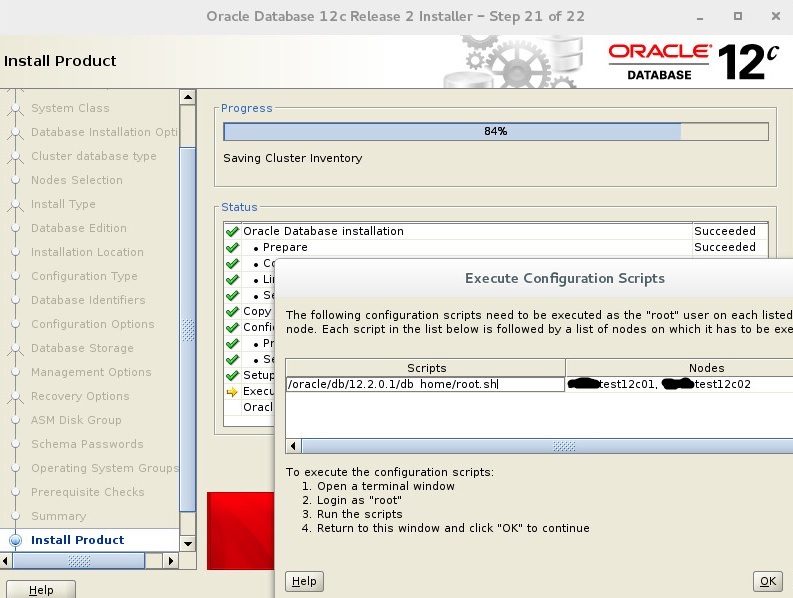

You have to run this scripts on both node respectively. The run can be a bit long. Scripts passes 19 steps, you can see these steps while running scripts. You can click OK, after run scripts on each node. If you do not get an error, you can see this screen.

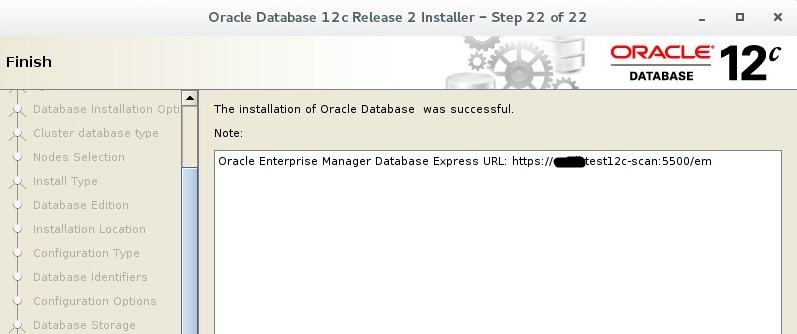

Installation finished.
